TD1208

LOW-CURRENT SIGFOX GATEWAY

TD1208 Features

* SIGFOX Ready™ Frequency range = ISM 868 MHz Receive sensitivity =-126 dBm Modulation

* (G)FSK, 4(G)FSK, GMSK

* OOK Max output power

* +14 dBm Low active radio power consumption

* 13/16 mA RX

* 37 mA TX @ +10 dBm Power supply = 2.3 to 3.3 V LGA25 (25.4×12.7×3.

TD1208 General Description

GND GND Reserved USR4 DB3 DB2 SDA SCL VDD USR2 GND 1 2 3 4 5 6 7 8 9 10 11 Telecom Design’s TD1208 devices are high performance, low current SIGFOX™ gateways. The combination of a powerful radio transceiver and a state-of-the-art ARM Cortex M3 baseband processor achieves extremely high performanc.

TD1208 Datasheet (369.91 KB)

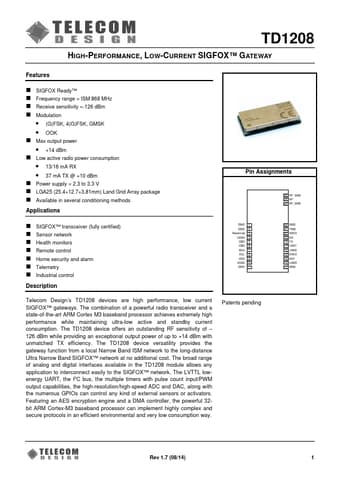

TD1208 Datasheet Preview — Preview of TD1208 PDF

Datasheet Details

Part number:

TD1208

Manufacturer:

TELECOM

File Size:

369.91 KB

Description:

Low-current sigfox gateway.
