TDA4481-D

Multistandard quasi parallel-sound processor for Mono-TV-Sets

TEMIC Semiconductors

TDA4481-D Features

* D High signal sensitivity D High signal to noise ratio D Easy alignment of the multistandard filters D Converter for different intercarrier frequencies D AF output level matched to SIMAVELEC condition D Few external components D Alignment free AM demodulator for standard L D Standardized SCART inter

TDA4481-D General Description

This circuit configuration permits high-quality processing of audio carriers for all standards, providing separate inputs for the video and audio carriers. The audio carrier signal (FM or AM) is passed to two multiplying mixer arrangements via a 3-stage variable wide-band amplifier with levelled out.

TDA4481-D Datasheet (182.74 KB)

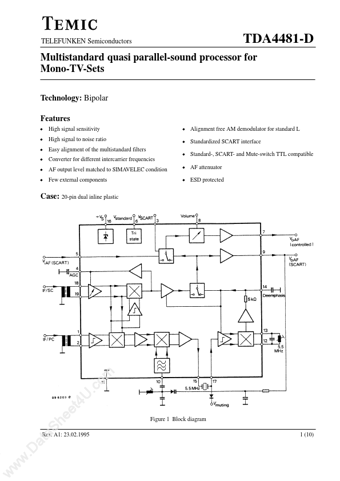

TDA4481-D Datasheet Preview — Preview of TDA4481-D PDF

Datasheet Details

Part number:

TDA4481-D

Manufacturer:

TEMIC Semiconductors

File Size:

182.74 KB

Description:

Multistandard quasi parallel-sound processor for mono-tv-sets.
