30H10K Datasheet, Mosfet, TGD

30H10K Features

• Mosfet
• VDS =30V,ID =100A RDS(ON) <5.5mΩ @ VGS=10V (Typ:4mΩ)
• High density cell design for ultra low Rdson
• Fully characterized avalanche voltage and current

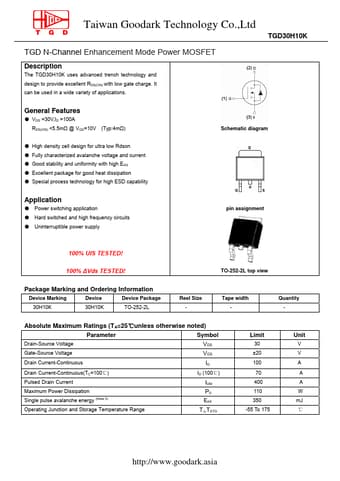

PDF File Details

Part number:

30H10K

Manufacturer:

TGD

File Size:

1.18MB

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The TGD30H10K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide

30H10K Application

• Applications TGD30H10K General Features
• VDS =30V,ID =100A RDS(ON) <5.5mΩ @ VGS=10V (Typ:4mΩ)
• High density cell design for u

TAGS

30H10K

TGD
