THAT120

Quad Low Noise / PNP Transistor Array

THAT120 Features

* Four Matched PNP Transistors Low noise

* 0.75 nV Hz Quad Low-Noise PNP Transistor Array THAT 120 APPLICATIONS

* Microphone Preamplifiers Tape Head Preamplifiers Current Sources Current Mirrors Log/Antilog Amplifiers Multi

THAT120 General Description

THAT120 is a quad, large-geometry monolithic PNP transistor array which combines low noise, high speed and excellent parametric matching. The large geometry typically results in 25 W base spreading resistance, producing 0.75 nV Hz voltage noise. This makes these parts an excellent choice for low-noi.

THAT120 Datasheet (43.07 KB)

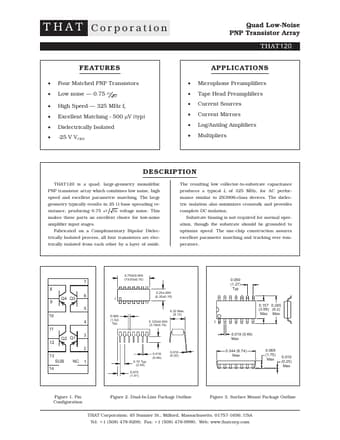

Preview of THAT120 PDF

Datasheet Details

Part number:

THAT120

Manufacturer:

THAT Corporation

File Size:

43.07 KB

Description:

Quad low noise / pnp transistor array.
