THAT1206

(THAT1200 / THAT1203 / THAT1206) Ingenius High-cmrr Balanced Input Line Receiver

THAT1206 Features

* High CMRR: typ. 90 dB at 60 Hz

* Extremely high common-mode input impedance

* Maintains balance under real-world conditions

* Transformer-like performance in an IC

* Excellent audio performance

* Wide bandwidth: typ. > 22 MHz

* High slew rate

THAT1206 General Description

The THAT 1200-series InGenius balanced line receivers overcome a serious limitation of conventional balanced input stages: poor common mode rejection in real-world applications. While conventional input stages measure well in the lab and perform well on paper, they fail to live up to their CMRR spe.

THAT1206 Datasheet (530.19 KB)

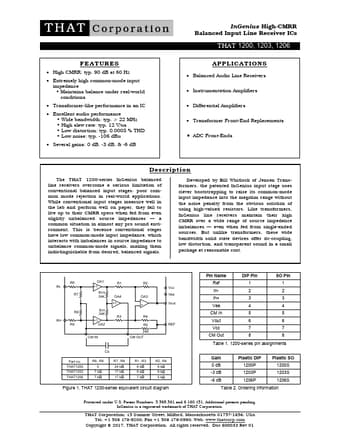

Preview of THAT1206 PDF

Datasheet Details

Part number:

THAT1206

Manufacturer:

THAT Corporation

File Size:

530.19 KB

Description:

(that1200 / that1203 / that1206) ingenius high-cmrr balanced input line receiver.
