THAT1280

(THAT128x) Dual Balanced Line Receiver ICs

THAT1280 Features

* High CMRR: typ. 90 dB at 60Hz

* Self-contained

* Excellent audio performance

* Wide bandwidth: typ. >7.6 MHz

* High slew rate: typ. 15 V/μs

* Low distortion: typ. 0.0006% THD

* Low noise: typ. -104.5 dBu

* Low current: typ. 3 mA (per

THAT1280 General Description

The THAT 1280 series of precision differential amplifiers was designed primarily for use as balanced line receivers for audio applications. Gains of 0 dB, ±3 dB, and ±6 dB are available to suit various applications requirements. These devices are laser-trimmed in wafer form to obtain the precision r.

THAT1280 Datasheet (192.30 KB)

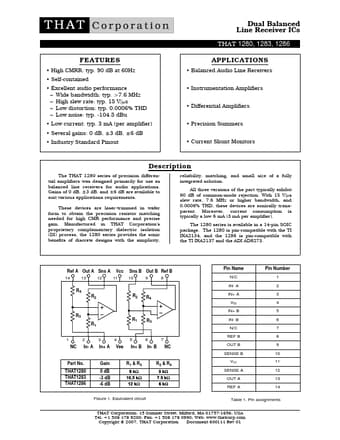

Preview of THAT1280 PDF

Datasheet Details

Part number:

THAT1280

Manufacturer:

THAT Corporation

File Size:

192.30 KB

Description:

(that128x) dual balanced line receiver ics.
