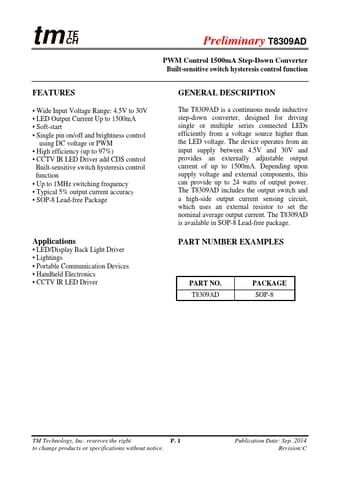

T8309AD Datasheet, Converter, TM Technology

T8309AD Features

• Converter
• Wide Input Voltage Range: 4.5V to 30V
• LED Output Current Up to 1500mA
• Soft-start
• Single pin on/off and brightness control using DC voltage or PWM

PDF File Details

Part number:

T8309AD

Manufacturer:

TM Technology

File Size:

122.86kb

Download:

📄 Datasheet

Description:

Pwm control 1500ma step-down converter. The T8309AD is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficie

T8309AD Application

• Applications
• LED/Display Back Light Driver
• Lightings
• Portable Communication Devices
• Handheld Electronics
