Part number: KV1330NT
Manufacturer: TOKO Inc
File Size: 46.01KB
Download: 📄 Datasheet
Description: VARIABLE CAPACITANCE DIODE
The KV1330NT variable capacitance diode was specially made to be used as tuning elements in car radios, radio cassettes, stereos, and other consumer radios. The KV1330NT is suitable for wide band tuning from 76 to 108 MHz. If the KV1330NT is used onl.
s Excellent Linearity (CV Curve) s Large Capacitance Ratio (A = 3.70 minimum) with Low Series Resistance s Two Diodes in a 3 Lead Through-Hole Discrete Package (TO92-3) s.
s FM Radio s Voltage Controlled Oscillator
DESCRIPTION
The KV1330NT variable capacitance diode was specially made to be.

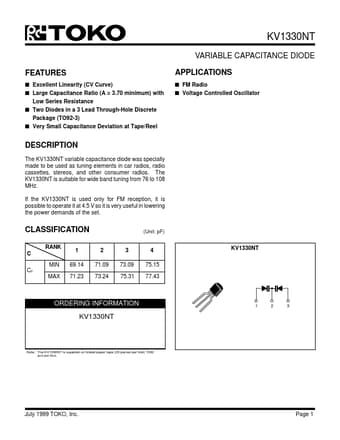

Image gallery
