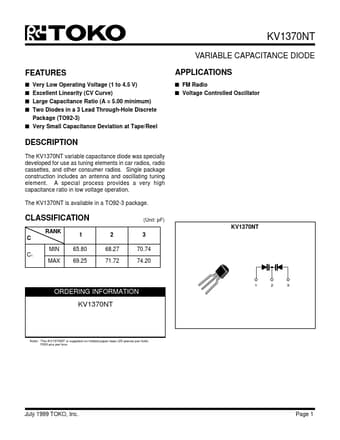

KV1370NT Datasheet, diode equivalent, TOKO Inc

KV1370NT Features

• Diode s s s s Very Low Operating Voltage (1 to 4.5 V) Excellent Linearity (CV Curve) Large Capacitance Ratio (A = 5.00 minimum) Two Diodes in a 3 Lead Through-Hole Discrete Package (TO92-3) s

PDF File Details

Part number:

KV1370NT

Manufacturer:

TOKO Inc

File Size:

45.90kb

Download:

📄 Datasheet

Description:

Variable capacitance diode. The KV1370NT variable capacitance diode was specially developed for use as tuning elements in car radios, radio cassettes, and other

KV1370NT Application

• Applications s FM Radio s Voltage Controlled Oscillator DESCRIPTION The KV1370NT variable capacitance diode was specially developed for use as tuni
