DS106C2

Fixed Inductors

DS106C2 Features

* 10.4mm Max. square and 6.8mm Max. height.

* Magnetically shielded construction and low DC resistance.

* Suitable for large current.

* Ideal for DC-DC converter inductor applications

* in hand held personal computer etc. www.DataSheet4U.com

* RoHS com

DS106C2 Datasheet (122.18 KB)

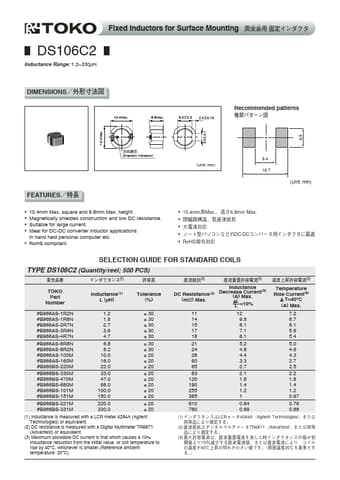

Preview of DS106C2 PDF

Datasheet Details

Part number:

DS106C2

Manufacturer:

TOKO

File Size:

122.18 KB

Description:

Fixed inductors.
Fixed Inductors for Surface Mounting DS106C2 Inductance Range: 1.2~330µH DIMENSIONS Recommended patterns 10.4Max. 6.8Max. _ 0.3 6.0 + _ 0.15 2.0 + .
