* 10.4mm Max. square, 6.8mm Max. height.
* Magnetically shielded construction and low DC resistance.
* Suitable for large currents.
* Ideal for a variety of DC-DC converter inductor applications.
* RoHS compliant www.Dat
DS106CB
TOKO
169.37 KB
Fixed inductors.

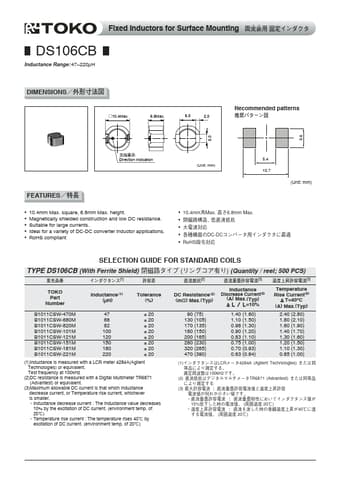

Fixed Inductors for Surface Mounting
DS106CB
Inductance Range: 47~220µH
DIMENSIONS
Recommended patterns
10.4Max. 6.8Max. 6.0 2.0
3.0
Direction ind.
