LL1005-FHL1N0S Datasheet - TOKO

LL1005-FHL1N0S Multilayer Chip Inductors

LL1005-FHL1N0S Features

* Inductance range: 1.0-100nH

* Miniature size: 0402 footprint (1.0mm x 0.5mm)

* Inductance specified at 100MHz and 800MHz

* Self-resonant frequency specified at ±15%

* Q: 8 ~ 50 typical (at 1800MHz)

* Temperature coefficient of inductance: +250ppm/°C

LL1005-FHL1N0S Datasheet (373.58 KB)

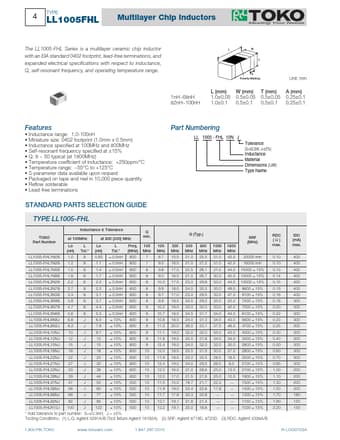

Preview of LL1005-FHL1N0S PDF

Datasheet Details

Part number:

LL1005-FHL1N0S

Manufacturer:

TOKO

File Size:

373.58 KB

Description:

Multilayer chip inductors.
