LL1005-FHL1N5S, LL1005FHL, Multilayer Chip Inductors

4 TYPE LL1005FHL Multilayer Chip Inductors Meeting Your Needs The LL1005-FHL Series is a multilayer ceramic chip inductor with an EIA standard 040.

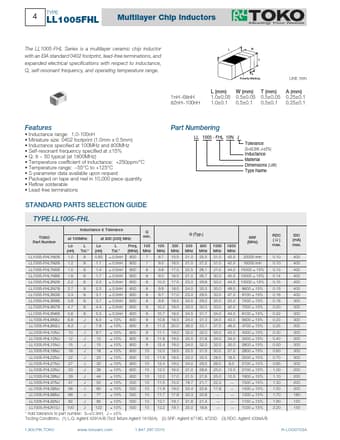

datasheet Preview Page 1 from Datasheet4u.com

LL1005FHL-TOKO.pdf

LL1005-FHL1N5S Datasheet Preview — This datasheet PDF includes multiple part numbers: LL1005-FHL1N5S, LL1005FHL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LL1005-FHL1N5S, LL1005FHL

Manufacturer:

TOKO

File Size:

373.58 KB

Description:

Multilayer Chip Inductors

Note:

This datasheet PDF includes multiple part numbers: LL1005-FHL1N5S, LL1005FHL.
Please refer to the document for exact specifications by model.

Features

* Inductance range: 1.0-100nH
* Miniature size: 0402 footprint (1.0mm x 0.5mm)
* Inductance specified at 100MHz and 800MHz
* Self-resonant frequency specified at ±15%
* Q: 8 ~ 50 typical (at 1800MHz)
* Temperature coefficient of inductance: +250ppm/°C
