LL1005-FHL12NJ, LL1005FHL Multilayer Chip Inductors

LL1005-FHL12NJ Description

4 TYPE LL1005FHL Multilayer Chip Inductors Meeting Your Needs The LL1005-FHL Series is a multilayer ceramic chip inductor with an EIA standard 040.

LL1005-FHL12NJ Features

* Inductance range: 1.0-100nH
* Miniature size: 0402 footprint (1.0mm x 0.5mm)
* Inductance specified at 100MHz and 800MHz
* Self-resonant frequency specified at ±15%
* Q: 8 ~ 50 typical (at 1800MHz)
* Temperature coefficient of inductance: +250ppm/°C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LL1005-FHL12NJ, LL1005FHL. Please refer to the document for exact specifications by model.

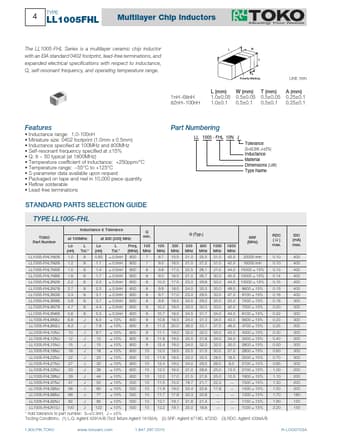

datasheet Preview Page 2

Datasheet Details

Part number
LL1005-FHL12NJ, LL1005FHL
Manufacturer
TOKO
File Size
373.58 KB
Datasheet
LL1005FHL-TOKO.pdf
Description
Multilayer Chip Inductors
Note
This datasheet PDF includes multiple part numbers: LL1005-FHL12NJ, LL1005FHL.
Please refer to the document for exact specifications by model.
