* Inductance range: 1.0-100nH
* Miniature size: 0402 footprint (1.0mm x 0.5mm)
* Inductance specified at 100MHz and 800MHz
* Self-resonant frequency specified at ±15%
* Q: 8 ~ 50 typical (at 1800MHz)
* Temperature coefficient of inductance: +250ppm/°C

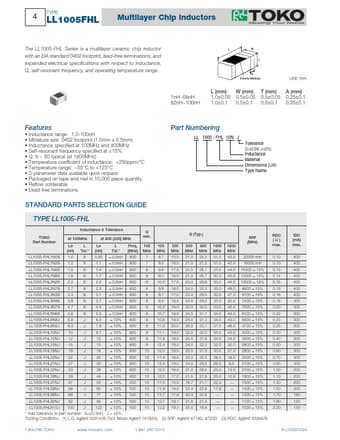

LL1005-FHL18NJ Datasheet (373.58 KB)
LL1005-FHL18NJ
TOKO
373.58 KB
Multilayer chip inductors.
4
TYPE
LL1005FHL
Multilayer Chip Inductors
Meeting Your Needs
The LL1005-FHL Series is a multilayer ceramic chip inductor with an EIA standard 040.
