TK11215CM - VOLTAGE REGULATOR

TOKO

📥 Download Datasheet

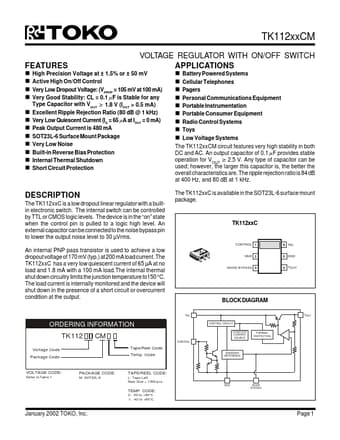

TK11215CM Datasheet Preview — Preview of TK11215CM PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TK11215CM
Manufacturer	TOKO
File Size	176.68 KB
Description	VOLTAGE REGULATOR
Datasheet	TK11215CM-TOKO.pdf

TK11215CM Product details

Features

n High Precision Voltage at ± 1.5% or ± 50 mV n Active High On/Off Control n Very Low Dropout Voltage: (VDROP = 105 mV at 100 mA) n Very Good Stability: CL = 0.1 mF is Stable for any Type Capacitor with VOUT ³ 1.8 V (IOUT > 0.5 mA) n Excellent Ripple Rejection Ratio (80 dB @ 1 kHz) n Very Low Quiescent Current (IQ = 65 mA at IOUT = 0 mA) n Peak Output Current is 480 mA n SOT23L-6 Surface Mount Package n Very Low Noise n Built-in Reverse Bias Protection n Internal Thermal Shutdown n Short Circuit.
