TK11230A

VOLTAGE REGULATOR

TK11230A Features

* s High Voltage Precision at ± 2.4% s Active High On/Off Control s Very Low Dropout Voltage 80 mV at 30 mA s Very Low Noise s Very Small SOT-23L or SOT-89-5 Surface Mount Packages s Internal Thermal Shutdown s Short Circuit Protection APPLICATIONS s Battery Powered Systems s Cellular Telephones s Pa

TK11230A General Description

The TK112xxA is a low dropout linear regulator with a builtin electronic switch. The internal switch can be controlled by TTL or CMOS logic levels. The device is in the ON state when the control pin is pulled to a logic high level. An external capacitor can be connected to the noise bypass pin to lo.

TK11230A Datasheet (382.16 KB)

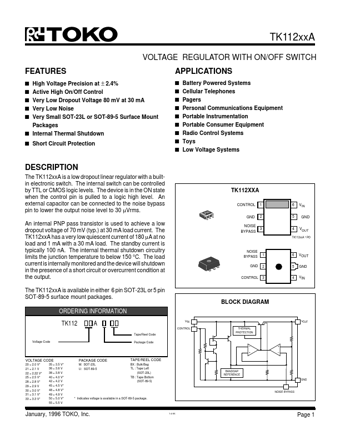

Preview of TK11230A PDF

Datasheet Details

Part number:

TK11230A

Manufacturer:

TOKO

File Size:

382.16 KB

Description:

Voltage regulator.
