TK65318

HIGH CURRENT STEP-UP CONVERTER

TK65318 Features

* HIGH CURRENT STEP-UP CONVERTER WITH BATTERY MONITOR APPLICATIONS s Very Low Quiescent Current (10 µA) s Extremely Low Operating Current (25 µA) s Internal Battery Monitor s Regulates Down to 1.8 V s Short Circuit Protection s Synchronous Rectification s Up To 95% Efficient s Battery Powered Syste

TK65318 General Description

The TK653xx mid power step-down converter is designed for portable battery powered systems, capable of operating from single Li-ion battery cells or two NiCad battery cells. The TK653xx provides the power switch, synchronous rectifier, and the control circuit for a buck step-down converter. Only thr.

TK65318 Datasheet (28.17 KB)

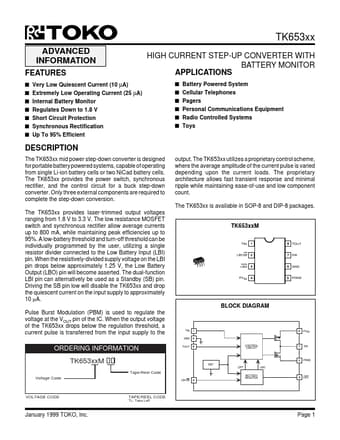

Preview of TK65318 PDF

Datasheet Details

Part number:

TK65318

Manufacturer:

TOKO

File Size:

28.17 KB

Description:

High current step-up converter.
