TK71649

LOW DROPOUT VOLTAGE REGULATOR

TK71649 Features

* s Available in ± 2.0 % or ± 1.0 % Output Tolerance s Active High On/Off Control s Very Low Quiescent Current s Very Low Dropout Voltage s Reverse Bias Protection s Miniature Package (SOT23-5) s Short Circuit Switch s High Ripple Rejection s Very High Output Impedance (Output Off) s Very Low Noise A

TK71649 General Description

The TK716xx is a low dropout linear regulator housed in a small SOT23-5 package, rated at 500 mW. The phase compensation in the IC has been optimized to allow the use of ceramic or tantalum output capacitors. The device is in the “on” state when the control pin is pulled to a logic high level. An i.

TK71649 Datasheet (105.78 KB)

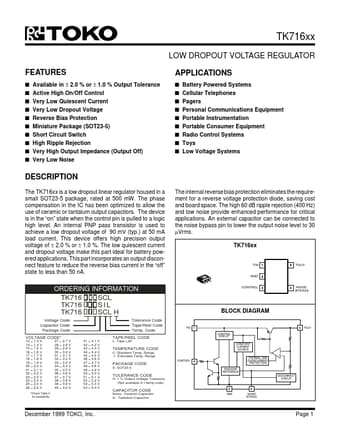

Preview of TK71649 PDF

Datasheet Details

Part number:

TK71649

Manufacturer:

TOKO

File Size:

105.78 KB

Description:

Low dropout voltage regulator.
