TK71749S

The TK71749S is LOW DROPOUT VOLTAGE REGULATOR designed by TOKO.

Product Overview

TOKO

Part number	TK71749S, TK71715S
Manufacturer	TOKO
File Size	146.10 KB
Description	LOW DROPOUT VOLTAGE REGULATOR
Datasheet	TK71715S-TOKO.pdf
Note	This datasheet PDF includes multiple part numbers: TK71749S, TK71715S. Please refer to the document for exact specifications by model.

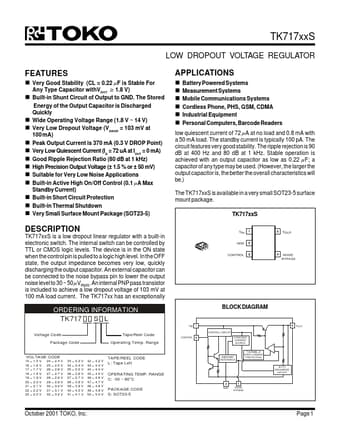

Additional preview pages of the TK71749S datasheet.

n Very Good Stability (CL = 0.22 mF is Stable For Any Type Capacitor withVOUT ³ 1.8 V) n Built-in Shunt Circuit of Output to GND. The Stored Energy of the Output Capacitor is Discharged Quickly n Wide Operating Voltage Range (1.8 V ~ 14 V) n Very Low Dropout Voltage (V = 103 mV at DROP 100 mA) n Peak Output Current is 370 mA (0.3 V DROP Point) n Very Low Quiescent Current (IQ = 72 uA at IOUT = 0 mA) n Good Ripple Rejection Ratio (80 dB at 1 kHz) n High Precision Output Voltage (± 1.5 % or ± 50 m.
