TK73247

The TK73247 is LOW DROPOUT REGULATOR designed by TOKO.

Product Overview

TOKO

Datasheet Details

Part number	TK73247, TK73211
Manufacturer	TOKO
File Size	117.31 KB
Description	LOW DROPOUT REGULATOR
Datasheet	TK73211-TOKO.pdf
Note	This datasheet PDF includes multiple part numbers: TK73247, TK73211. Please refer to the document for exact specifications by model.

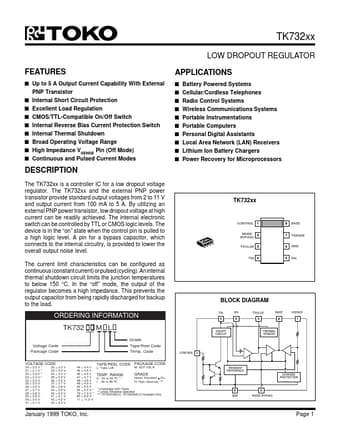

Additional preview pages of the TK73247 datasheet.

Product details

Description

APPLICATIONS s Battery Powered Systems s Cellular/Cordless Telephones s Radio Control Systems s Wireless Communications Systems s Portable Instrumentations s Portable Computers s Personal Digital Assistants s Local Area Network (LAN) Receivers s Lithium Ion Battery Chargers s Power Recovery for Microprocessors The TK732xx is a controller IC for a low dropout voltage regulator.The TK732xx and the external PNP power transistor provide standard output voltages from 2 to 11 V and output current f

Features

s Up to 5 A Output Current Capability With External PNP Transistor s Internal Short Circuit Protection s Excellent Load Regulation s CMOS/TTL-Compatible On/Off Switch s Internal Reverse Bias Current Protection Switch s Internal Thermal Shutdown s Broad Operating Voltage Range s High Impedance VSENSE Pin (Off Mode) s Continuous and Pulsed Current Modes.
