TTP103 Datasheet - TONTEK

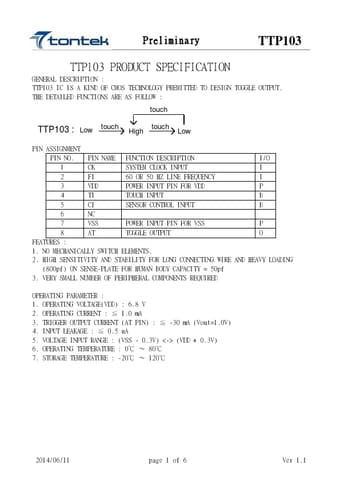

TTP103 CMOS TECHNOLOGY PREMITTED TO DESIGN TOGGLE OUTPUT

: TTP103 IC IS A KIND OF CMOS TECHNOLOGY PREMITTED TO DESIGN TOGGLE OUTPUT. THE DETAILED FUNCTIONS ARE AS FOLLOW : touch TTP103 : Low touch High touch Low PIN ASSIGNMENT PIN NO. PIN NAME FUNCTION DESCRIPTION I/O 1 CK SYSTEM CLOCK INPUT I 2 FI 60 OR 50 HZ LINE FREQUENCY I 3 VDD POWER INPU.

TTP103 Features

* : 1. NO MECHANICALLY SWITCH ELEMENTS. 2. HIGH SENSITIVITY AND STABILITY FOR LONG CONNECTING WIRE AND HEAVY LOADING (800pf) ON SENSE-PLATE FOR HUMAN BODY CAPACITY = 50pf 3. VERY SMALL NUMBER OF PERIPHERAL COMPONENTS REQUIRED OPERATING PARAMETER : 1. OPERATING VOLTAGE(VDD) : 6.8 V 2. OPERATING CU

TTP103-TONTEK.pdf
