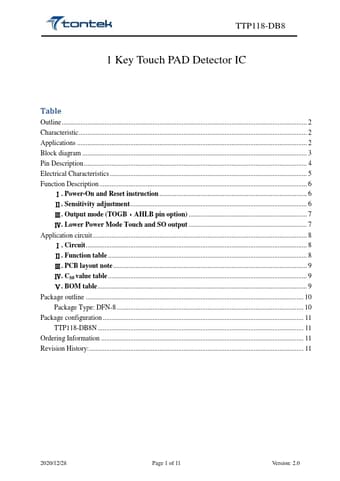

TTP118-DB8 - 1 Key Touch PAD Detector

4 Electrical Characteristics 5 Function Description 6 Ⅰ. Power-On and Reset instruction 6 Ⅱ. Sensitivity adjustment 6 Ⅲ. Output mode (TOGB，AHLB pin option) 7 Ⅳ. Lower Power Mode Touch and SO output 7 Application circuit 8 Ⅰ. Circuit 8 Ⅱ. Function table 8 Ⅲ. PCB layout note 9 Ⅳ. CS0 value tab.

TTP118-DB8 Features

* for DC or AC application. Characteristic

* Operating voltage 2.4~5.5V

* Lower Power mode operating Current (no load) @VDD=3.3V, typical 4uA, maximum 8uA. @VDD=5.0V, typical 8uA, maximum 16uA.

* Built-in power on initial(POR) and low voltage reset (LVR) function

* The response time(mi
