TC3131 - 2.4 GHz 1W MMIC

Datasheet Summary

Description

The TC3131 is a 2 stage PHEMT MMIC power amplifier.

It is designed for use in low cost and high volume 2.4-2.5 GHz ISM band applications.

The MMIC provides a typical gain of 26 dB and saturation power of more than 30 dBm.

Features

  • P-1 dB: 30 dBm Small Signal Gain: 28 dB Power Added Efficiency: 32 % IP3: 39 dBm Bias Condition: 400 mA @ 7 V PHOTO.

📥 Download Datasheet

Datasheet preview – TC3131

Datasheet Details

Part number TC3131
Manufacturer TRANSCOM
File Size 126.78 KB
Description 2.4 GHz 1W MMIC
Datasheet download datasheet TC3131 Datasheet
Additional preview pages of the TC3131 datasheet.

📁 Similar Datasheet

  • TC313 - (TC311 - TC313) FLIP FLOPS (Sertech)
  • TC3100H - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE (Lite-On Technology)
  • TC3100H - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE (Lite-On)
  • TC311 - (TC311 - TC313) FLIP FLOPS (Sertech)
  • TC312 - FLIP FLOPS (Sertech)
  • TC3151 - 2.4 GHz 2W MMIC (Teletronics)
  • TC3162L2M - ADSL2/2+ Bridge/Router Processor (Trendchip)
  • TC3162P2M - ADSL2/2+ Router/Gateway Processor (TrendChip)
  • TC301D - touch sensor (Nutech)
  • TC303 - POWER NAND GATES (ETC)
Other Datasheets by TRANSCOM
  • TC3133 - 2.4 GHz 1W MMIC
  • TC3139 - 2.3 - 2.5 GHz 1W MMIC
  • TC3141 - 2.4 GHz 2W MMIC
  • TC3339 - 2.9 - 3.7 GHz 1W MMIC
  • TC3873 - 5.25 - 5.875 GHz 3W prematched FETs
  • TC3879 - 7W Packaged Single-Bias PHEMT GaAs Power FETs
  • TC3889 - 5W Packaged Self-Bias PHEMT GaAs Power FETs

Full PDF Text Transcription

Click to expand full text

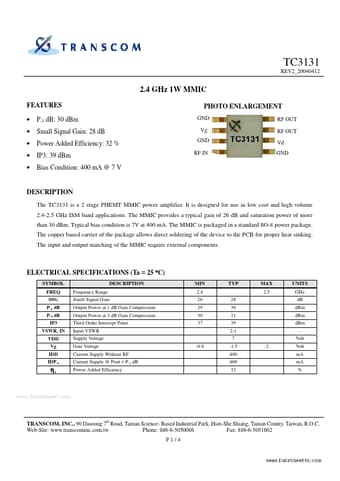

TC3131 REV2_20040412 2.4 GHz 1W MMIC FEATURES • • • • • P-1 dB: 30 dBm Small Signal Gain: 28 dB Power Added Efficiency: 32 % IP3: 39 dBm Bias Condition: 400 mA @ 7 V PHOTO ENLARGEMENT GND Vg GND RF IN RF OUT RF OUT Vd GND DESCRIPTION The TC3131 is a 2 stage PHEMT MMIC power amplifier. It is designed for use in low cost and high volume 2.4-2.5 GHz ISM band applications. The MMIC provides a typical gain of 26 dB and saturation power of more than 30 dBm. Typical bias condition is 7V at 400 mA. The MMIC is packaged in a standard SO-8 power package. The copper based carrier of the package allows direct soldering of the device to the PCB for proper heat sinking. The input and output matching of the MMIC require external components.
