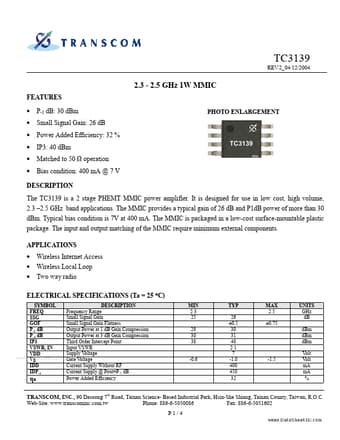

TC3139 Datasheet, 1w Mmic, TRANSCOM

2.3 - 2.5 ghz 1w mmic

TC3139

TRANSCOM

215.28 KB

2.3 - 2.5 ghz 1w mmic.
The TC3139 i2 stage PHEMT MMIC power amplifier.
It is designed for use in low cost, high volume, 2.3 *2.5 GHz band a.

P-1 dB: 30 dBm Small Signal Gain: 26 dB Power Added Efficiency: 32 % IP3: 40 dBm Matched to 50 Ω operation Bias condition: 400 mA @ 7 V PHOTO ENLARGEMENT DES

The MMIC provides a typical gain of 26 dB and P1dB power of more than 30 dBm. Typical bias condition is 7V
