MBR75100R, MBR7520 Datasheet - TRANSYS

MBR75100R (MBR7520 - MBR75100R) SCHOTTKY DIODES

MBR75100R Features

* High Surge Capability Types up to100V V RRM DO-5 Maximum Ratings Operating Temperature: -65 C to +150 Storage Temperature: -65 C to +175 M C J N B Part Number MBR7520(R) MBR7530(R) MBR7535(R) MBR7540(R) MBR7545(R) MBR7560(R) MBR7580(R) MBR75100(R) Maximum Recurrent Peak Reverse Voltage 20V 30V

MBR7520_TRANSYS.pdf

This datasheet PDF includes multiple part numbers: MBR75100R, MBR7520. Please refer to the document for exact specifications by model.

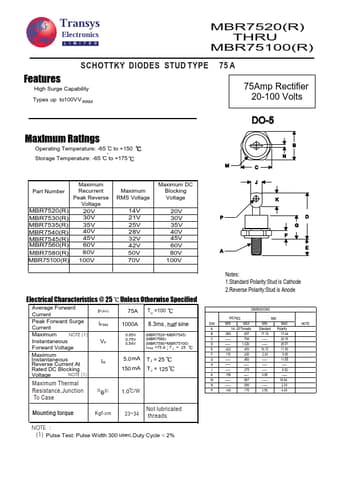

MBR75100R Datasheet Preview Page 2

Datasheet Details

Part number:

MBR75100R, MBR7520

Manufacturer:

TRANSYS

File Size:

172.30 KB

Description:

(mbr7520 - mbr75100r) schottky diodes.

Note:

This datasheet PDF includes multiple part numbers: MBR75100R, MBR7520.
Please refer to the document for exact specifications by model.
