MBR7535R, MBR7520, (MBR7520 - MBR75100R) SCHOTTKY DIODES

Transys Electronics L I M I T E D MBR7520(R) THRU MBR75100(R) SCHOTTKY DIODES STUD TYPE 75 A 75Amp Rectifier 20-100 Volts .

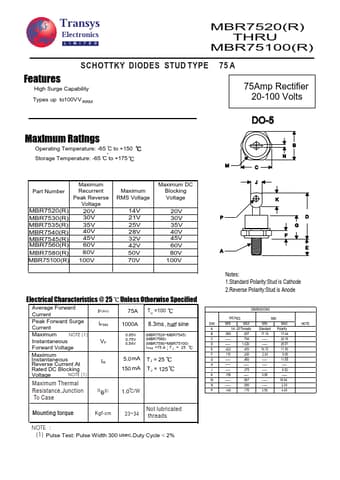

datasheet Preview Page 1 from Datasheet4u.com

MBR7520_TRANSYS.pdf

MBR7535R Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR7535R, MBR7520. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR7535R, MBR7520

Manufacturer:

TRANSYS

File Size:

172.30 KB

Description:

(MBR7520 - MBR75100R) SCHOTTKY DIODES

Note:

This datasheet PDF includes multiple part numbers: MBR7535R, MBR7520.
Please refer to the document for exact specifications by model.

Features

* High Surge Capability Types up to100V V RRM DO-5 Maximum Ratings Operating Temperature: -65 C to +150 Storage Temperature: -65 C to +175 M C J N B Part Number MBR7520(R) MBR7530(R) MBR7535(R) MBR7540(R) MBR7545(R) MBR7560(R) MBR7580(R) MBR75100(R) Maximum Recurrent Peak Reverse Voltage 20V 30V
