MBR15200FCT, MBR1540FCT 15 AMPERES SCHOTTKY BARRIER RECTIFIERS

MBR15200FCT Description

MBR1540FCT~MBR15200FCT MBR1540FCT~MBR15200FCT 15 AMPERES SCHOTTKY BARRIER RECTIFIERS DRAWING Voltage 40 to 200 Volts Current 15 Amperes .

MBR15200FCT Features

* Plastic package has underwriters laboratory Flammability classification 94v-O. Flame retardant epoxy molding compound.
* Metal silicon junction, majority carrier condition.
* Low power loss, high efficiency.
* High current capability
* Guarding for over voltage protectio

MBR15200FCT Applications

* In compliance with EU ROHS 2002/95/EC directives.
* Case: ITO-220AB Maximum ratings and Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. PARAMETER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR15200FCT, MBR1540FCT. Please refer to the document for exact specifications by model.

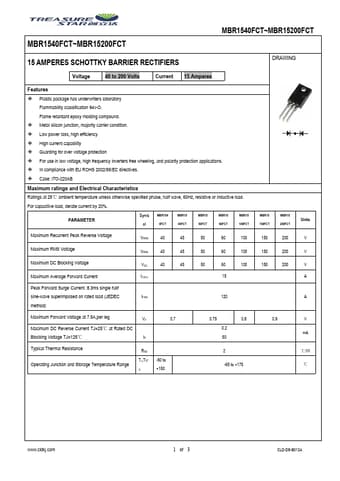

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR15200FCT, MBR1540FCT
Manufacturer
TREA SURE STAR
File Size
219.44 KB
Datasheet
MBR1540FCT-TREASURESTAR.pdf
Description
15 AMPERES SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBR15200FCT, MBR1540FCT.
Please refer to the document for exact specifications by model.
