MBR15200 SCHOTTKY RECTIFIER

MBR15200 Description

SANGDEST MICROELECTRONICS Technical Data Data Sheet N0757, Rev.- Applications: MBR15200 SCHOTTKY RECTIFIER * Switching power supply

MBR15200 Features

* 150 °C TJ operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* T

MBR15200 Applications

* MBR15200 SCHOTTKY RECTIFIER
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection

📥 Download Datasheet

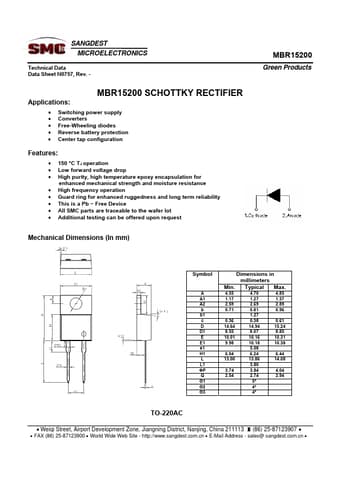

Preview of MBR15200 PDF
datasheet Preview Page 2 datasheet Preview Page 3
