MBR1560CT-1, MBR1560CT SCHOTTKY RECTIFIER

MBR1560CT-1 Description

MBR1560CT MBRB1560CT MBR1560CT-1 Technical Data Data Sheet N0727, Rev.A MBR1560CT/MBRB1560CT/MBR1560CT-1 SCHOTTKY RECTIFIER .

MBR1560CT-1 Applications

* 150 C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for
* enhanced mechanical strength and moisture resistance
* High frequency operation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR1560CT-1, MBR1560CT. Please refer to the document for exact specifications by model.

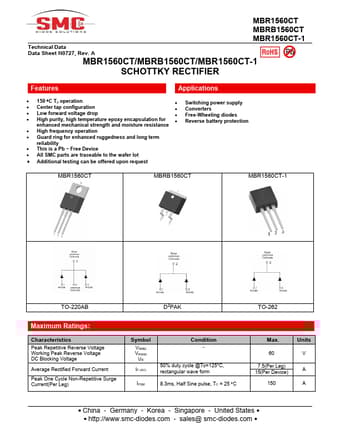

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR1560CT-1, MBR1560CT
Manufacturer
SANGDESTMicroelectronics ↗
File Size
322.97 KB
Datasheet
MBR1560CT-SANGDESTMICROELECTRONICS.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBR1560CT-1, MBR1560CT.
Please refer to the document for exact specifications by model.
