MBR1560CT - SCHOTTKY BARRIER TYPE DIODE

MBR1560CT Description

SEMICONDUCTOR TECHNICAL DATA SWITCHING TYPE POWER SUPPLY APPLICATION.CONVERTER & CHOPPER APPLICATION..

MBR1560CT Features

* Average Output Rectified Current : IO=15A. Repetitive Peak Reverse Voltage : VRRM=60V. Fast Reverse Recovery Time : trr=35ns. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Repetitive Peak Reverse Voltage VRRM 60 Average Output Rectified Current (Note) IO 15 Peak One Cycle Surge Forwa

📥 Download Datasheet

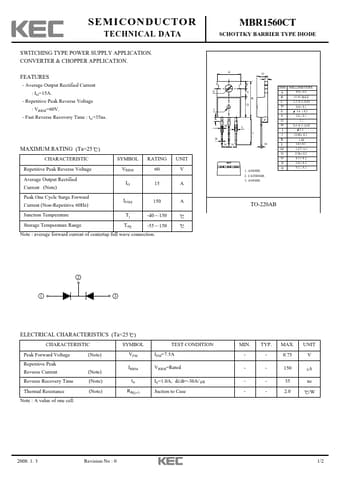

Preview of MBR1560CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBR1560CT
Manufacturer
KEC
File Size
31.82 KB
Datasheet
MBR1560CT-KEC.pdf
Description
SCHOTTKY BARRIER TYPE DIODE
