MBR1560S SCHOTTKY RECTIFIER

MBR1560S Description

Technical Data Data Sheet N1378, Rev.B MBR1560S MBR1560S SCHOTTKY RECTIFIER TO-277B .

MBR1560S Features

* Designed as Bypass Diodes for Solar Panels
* High Forward Surge Capability
* Ultra Low Forward Voltage Drop
* Excellent High Temperature Stability
* Terminals finish: 100% Pure Tin
* This is a Halogen Free Device
* All SMC parts are traceable to the wafer lot
* Addi

MBR1560S Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Maximum Ratings(TC =25°C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current P

📥 Download Datasheet

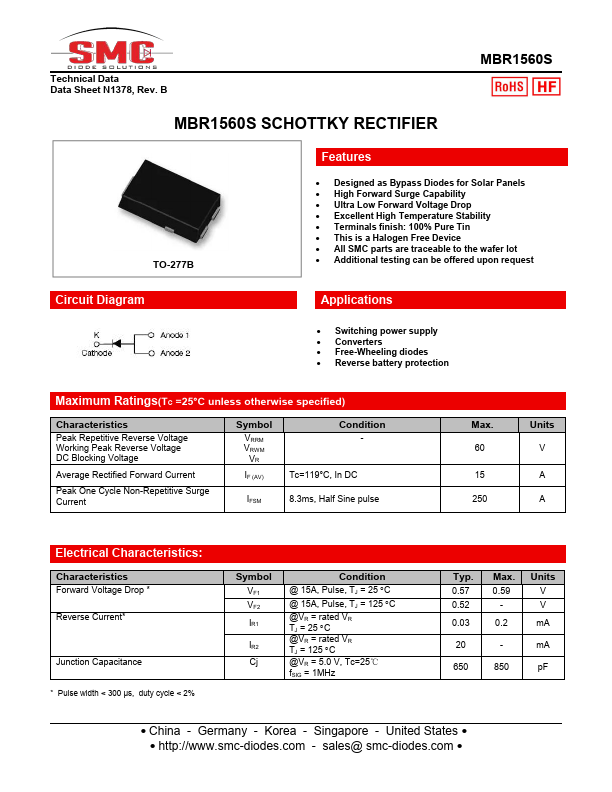

Preview of MBR1560S PDF

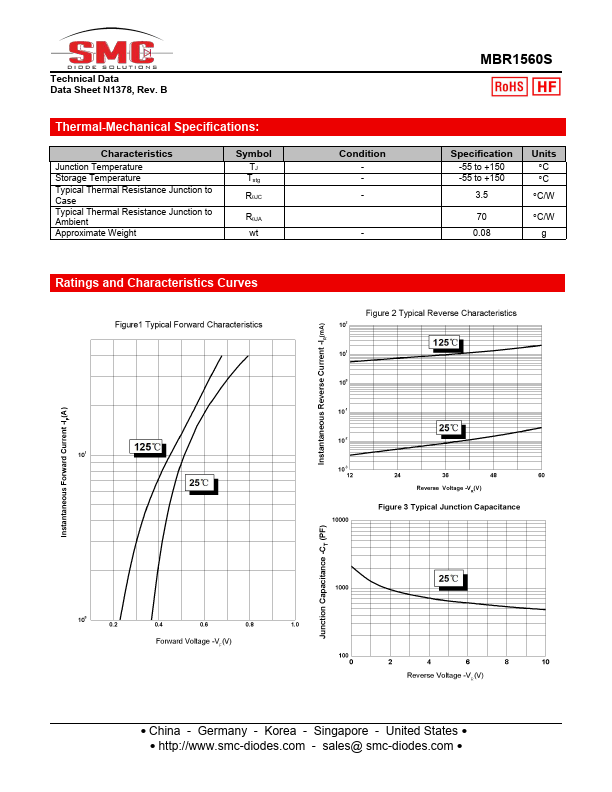

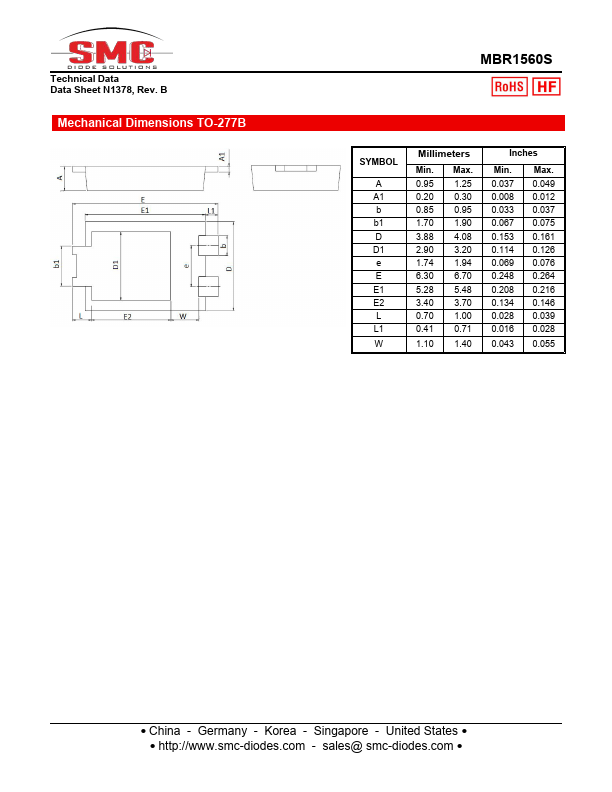

datasheet Preview Page 2 datasheet Preview Page 3
