MBR156 - (MBR1505 - MBR1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Product Overview

Dc Components

Part number	MBR156
Manufacturer	Dc Components
File Size	310.82 KB
Description	(MBR1505 - MBR1510) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MBR156 Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR156, MBR1505. Please refer to the document for exact specifications by model.

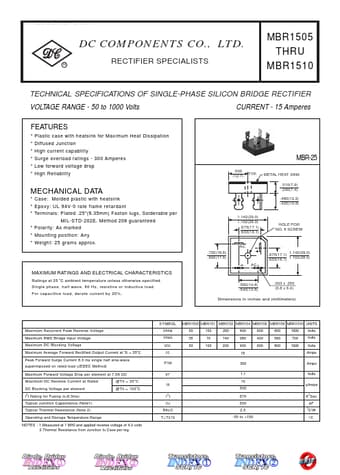

Additional preview pages of the MBR156 datasheet.

Plastic case with heatsink for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 300 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. METAL HEAT SINK .310(7.9) .290(7.4) .480(12.2) .425(10.8) 1.142(29.0) 1.102(28.0) .673(17.1) .633(16.1) MBR-25.
