MBR15200 Schottky Barrier Rectifier

MBR15200 Description

Schottky Barrier Rectifier INCHANGE Semiconductor MBR15200 .

MBR15200 Features

* Low forward voltage
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* This is a Pb-Free Device

MBR15200 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Center tap configuration ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR IF(AV) IFSM Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Vol

📥 Download Datasheet

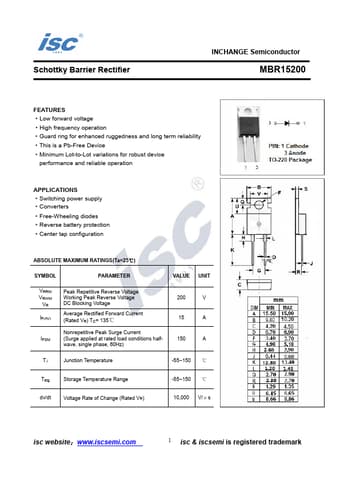

Preview of MBR15200 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBR15200
Manufacturer
Inchange Semiconductor
File Size
218.73 KB
Datasheet
MBR15200-InchangeSemiconductor.pdf
Description
Schottky Barrier Rectifier
