TGAN15N120ND NPT Trench IGBT

📥 Download Datasheet Datasheet Preview Page 1

Description

.

📥 Download Datasheet

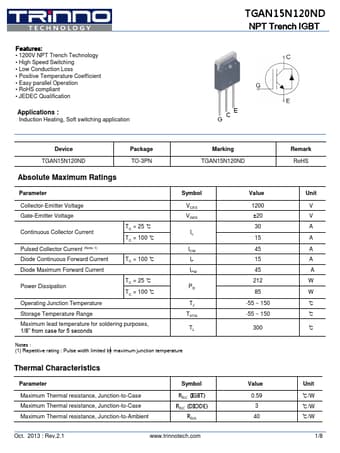

Preview of TGAN15N120ND PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TGAN15N120ND
Manufacturer
TRinno
File Size
889.70 KB
Datasheet
TGAN15N120ND-TRinno.pdf
Description
NPT Trench IGBT

Features

* 1200V NPT Trench Technology
* High Speed Switching
* Low Conduction Loss
* Positive Temperature Coefficient
* Easy parallel Operation
* RoHS compliant

Applications

* : Induction Heating, Soft switching application TGAN15N120ND NPT Trench IGBT E GC Device TGAN15N120ND Package TO-3PN Marking TGAN15N120ND Absolute Maximum Ratings Parameter Collector-Emitter Voltage Gate-Emitter Voltage Continuous Collector Current Pulsed Collector Current (Note 1) TC = 25
