Features: • 1350V Field Stop Trench Technology • High Speed Switching • Low Conduction Loss • Positive Temperature Coefficient • Easy Parallel Operation • RoHS Compliant • JEDEC Qualification
Applications : Induction Heating, Soft switching application

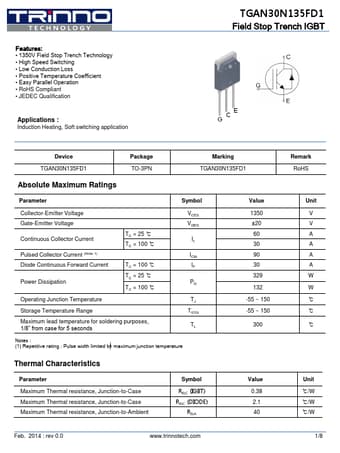

TGAN30N135FD1
Field Stop Trench IGBT
E GC
Device TGAN30N135FD1
Package TO-3PN
Marking TGAN30N135FD1
Absolute Maximum Ratings
Parameter
Symbol
Collector-Emitter Voltage
Gate-Emitter Voltage Continuous Collector Current Pulsed Collector Current (Note 1) Diode Continuous Forward Current Power Dissipation
Operating Junction Temperature
TC = 25 ℃ TC = 100 ℃
TC = 100 ℃ TC = 25 ℃ TC = 100 ℃
Storage Temperature Range
Maximum lead temperature for soldering purposes, 1/8” from case for 5 seconds
VCES VGES
Ic
ICM IF
PD
TJ TSTG TL
Notes :
TGAN30N135FD1 Datasheet
