TGAN60N65F2DS - Field Stop Trench IGBT

📥 Download Datasheet

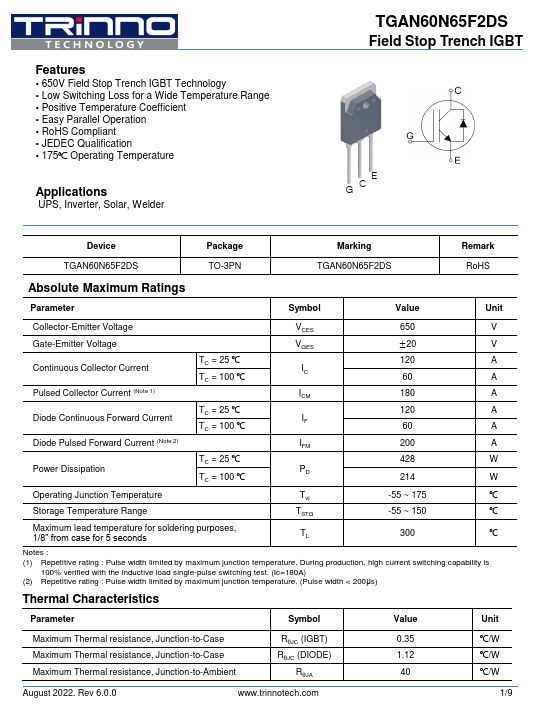

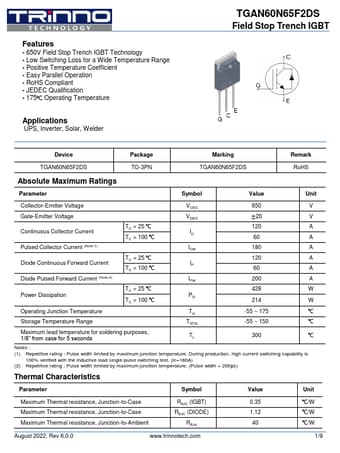

TGAN60N65F2DS Datasheet Preview — Preview of TGAN60N65F2DS PDF

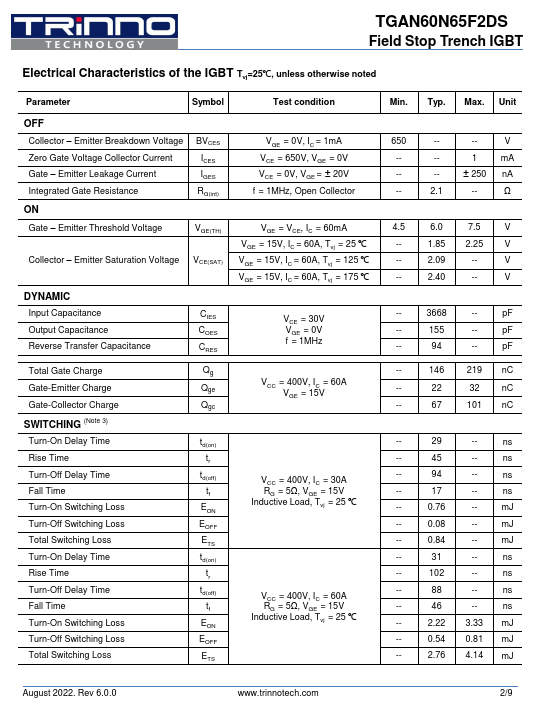

datasheet Preview Page 2

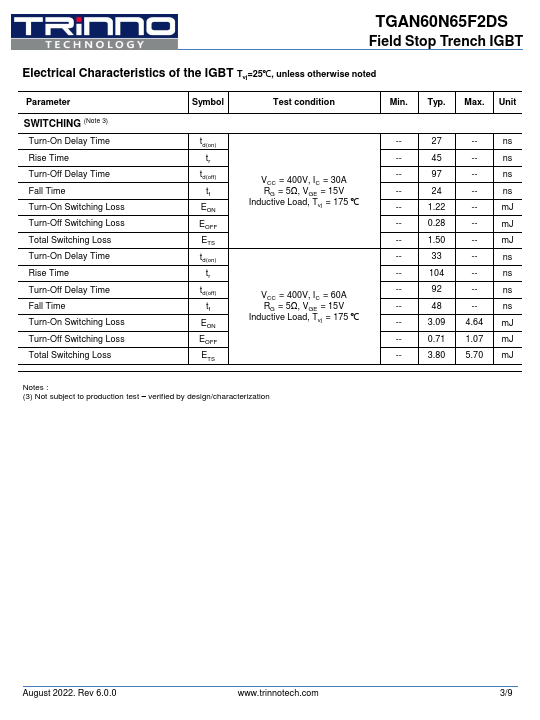

datasheet Preview Page 3

Datasheet Details

Part number	TGAN60N65F2DS
Manufacturer	TRinno
File Size	818.56 KB
Description	Field Stop Trench IGBT
Datasheet	TGAN60N65F2DS-TRinno.pdf

TGAN60N65F2DS Product details

Features

650V Field Stop Trench IGBT Technology.
Low Switching Loss for a Wide Temperature Range.
Positive Temperature Coefficient.
Easy Parallel Operation.
RoHS Compliant.
JEDEC Qualification.
175℃ Operating Temperature.
