TMD3N50AZG, TMD3N50AZ - N-channel MOSFET

📥 Download Datasheet

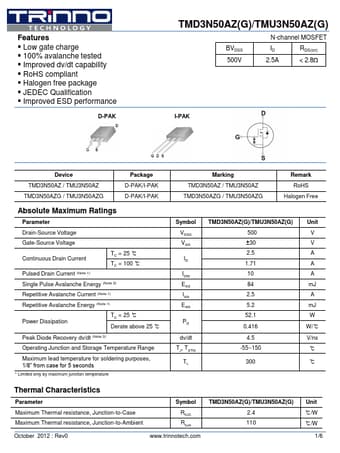

TMD3N50AZG Datasheet Preview — This datasheet PDF includes multiple part numbers: TMD3N50AZG, TMD3N50AZ. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TMD3N50AZG, TMD3N50AZ
Manufacturer	TRinno
File Size	444.26 KB
Description	N-channel MOSFET
Datasheet	TMD3N50AZ-TRinno.pdf
Note	This datasheet PDF includes multiple part numbers: TMD3N50AZG, TMD3N50AZ. Please refer to the document for exact specifications by model.

TMD3N50AZG Product details

Features

Low gate charge.
100% avalanche tested.
Improved dv/dt capability.
RoHS compliant.
Halogen free package.
JEDEC Qualification.
Improved ESD performance D-PAK TMD3N50AZ(G)/TMU3N50AZ(G) BVDSS 500V N-channel MOSFET ID RDS(on) 2.5A < 2.8W I-PAK Device TMD3N50AZ / TMU3N50AZ TMD3N50AZG / TMU3N50AZG Package D-PAK/I-PAK D-PAK/I-PAK Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Not.
