TMD3N80G - N-channel MOSFET

📥 Download Datasheet

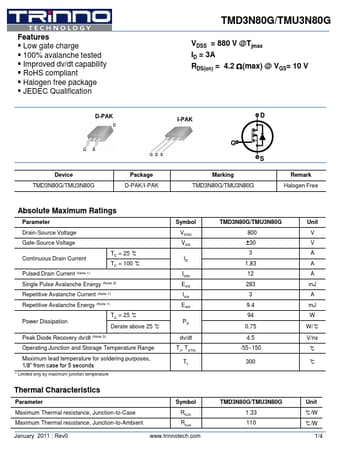

TMD3N80G Datasheet Preview — Preview of TMD3N80G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TMD3N80G
Manufacturer	TRinno
File Size	325.49 KB
Description	N-channel MOSFET
Datasheet	TMD3N80G-TRinno.pdf

TMD3N80G Product details

Features

Low gate charge.
100% avalanche tested.
Improved dv/dt capability.
RoHS compliant.
Halogen free package.
JEDEC Qualification TMD3N80G/TMU3N80G VDSS = 880 V @Tjmax ID = 3A RDS(on) = 4.2 W(max) @ VGS= 10 V D-PAK I-PAK D Device TMD3N80G/TMU3N80G Package D-PAK/I-PAK G S Marking TMD3N80G/TMU3N80G Remark Halogen Free Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note 1) TC = 25 ℃ TC.
