TMPF5N50, TMP5N50 - N-channel MOSFET

The TMPF5N50 by TRinno is a N-channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TMPF5N50, TMP5N50
Manufacturer	TRinno
File Size	337.62 KB
Description	N-channel MOSFET
Datasheet	TMP5N50-TRinno.pdf
Note	This datasheet PDF includes multiple part numbers: TMPF5N50, TMP5N50. Please refer to the document for exact specifications by model.

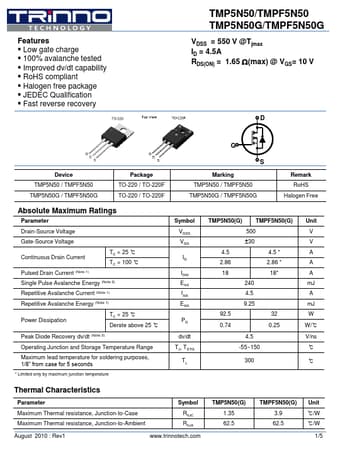

Additional preview pages of the TMPF5N50 datasheet.

Low gate charge.
100% avalanche tested.
Improved dv/dt capability.
RoHS compliant.
Halogen free package.
JEDEC Qualification.
Fast reverse recovery TMP5N50/TMPF5N50 TMP5N50G/TMPF5N50G VDSS = 550 V @Tjmax ID = 4.5A RDS(ON) = 1.65 W(max) @ VGS= 10 V D G Device TMP5N50 / TMPF5N50 TMP5N50G / TMPF5N50G Package TO-220 / TO-220F TO-220 / TO-220F S Marking TMP5N50 / TMPF5N50 TMP5N50G / TMPF5N50G Remark RoHS Halogen Free Absolute Maximum Ratings Parameter Drai.
