TMPF5N50G, TMP5N50 N-channel MOSFET

TMPF5N50G Description

.

TMPF5N50G Features

* Low gate charge
* 100% avalanche tested
* Improved dv/dt capability
* RoHS compliant
* Halogen free package
* JEDEC Qualification
* Fast reverse recovery TMP5N50/TMPF5N50 TMP5N50G/TMPF5N50G VDSS = 550 V @Tjmax ID = 4.5A RDS(ON) = 1.65 W(max) @ VGS= 10 V D G Device TM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TMPF5N50G, TMP5N50. Please refer to the document for exact specifications by model.

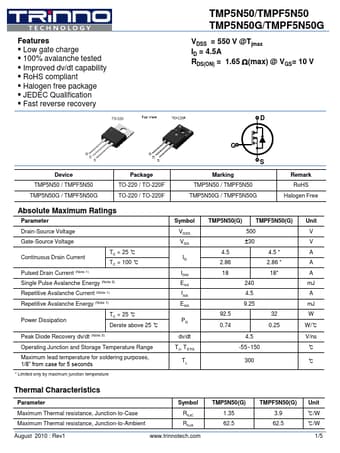

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TMPF5N50G, TMP5N50
Manufacturer
TRinno
File Size
337.62 KB
Datasheet
TMP5N50-TRinno.pdf
Description
N-channel MOSFET
Note
This datasheet PDF includes multiple part numbers: TMPF5N50G, TMP5N50.
Please refer to the document for exact specifications by model.
