TMPF5N60Z, TMP5N60Z N-channel MOSFET

TMPF5N60Z Description

.

TMPF5N60Z Features

* Low gate charge
* 100% avalanche tested
* Improved dv/dt capability
* RoHS compliant
* Halogen free package
* JEDEC Qualification TMP5N60Z(G)/TMPF5N60Z(G) BVDSS 600V N-channel MOSFET ID RDS(on) 4.2A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TMPF5N60Z, TMP5N60Z. Please refer to the document for exact specifications by model.

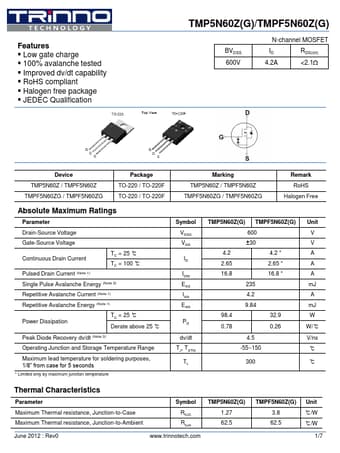

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TMPF5N60Z, TMP5N60Z
Manufacturer
TRinno
File Size
601.53 KB
Datasheet
TMP5N60Z-TRinno.pdf
Description
N-channel MOSFET
Note
This datasheet PDF includes multiple part numbers: TMPF5N60Z, TMP5N60Z.
Please refer to the document for exact specifications by model.
