SD140P

(SD120P - SD1100P) Schottky Barrier Rectifiers

SD140P Features

* Low forward voltage Extremely Low thermal resistance High Current Capability For surface mount application O Higher temp soldering: 260 C for 10 seconds at terminals 0.053(1.35) Max. SOD-123 0.022(0.55) Typ. Min. 0.152(3.85) 0.140(3.55) 0.112(2.85) 0.100(2.55) 0.010(0.25) Min. Mechanical Data C

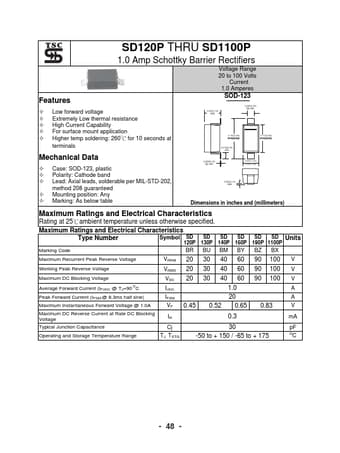

SD140P Datasheet (70.63 KB)

Preview of SD140P PDF

Datasheet Details

Part number:

SD140P

Manufacturer:

TSC

File Size:

70.63 KB

Description:

(sd120p - sd1100p) schottky barrier rectifiers.
