SD1405 Datasheet, Applications, ST Microelectronics

PDF File Details

Part number:

SD1405

Manufacturer:

STMicroelectronics ↗

File Size:

80.49kb

Download:

📄 Datasheet

Description:

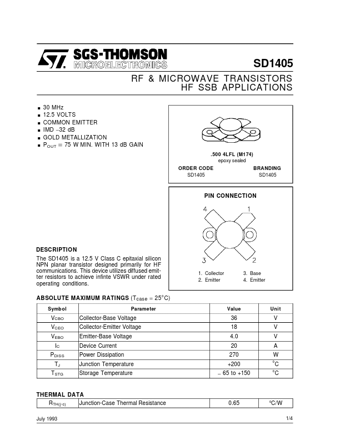

Rf & microwave transistors hf ssb applications. The SD1405 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for HF communications. This device utilizes

SD1405 Application

• Applications . . . . . . 30 MHz 12.5 VOLTS COMMON EMITTER IMD
• 32 dB GOLD METALLIZATION P OUT = 75 W MIN. WITH 13 dB GAIN .500 4LFL (M174)
