SD1414

RF & MICROWAVE TRANSISTORS 800-900 MHz APPLICATIONS

SD1414 General Description

The SD1414 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed for amplifier applications in the 806 - 866 MHz frequency range. Internal input matching and common base configuration assure optimum gain and efficiency across the entire frequency band. The SD1414 withstands infinite V.

SD1414 Datasheet (62.90 KB)

Preview of SD1414 PDF

Datasheet Details

Part number:

SD1414

Manufacturer:

STMicroelectronics ↗

File Size:

62.90 KB

Description:

Rf & microwave transistors 800-900 mhz applications.

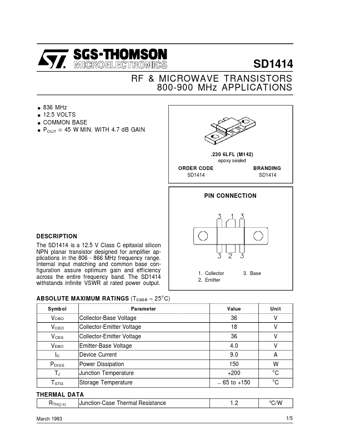

SD1414 RF & MICROWAVE TRANSISTORS 800-900 MHz APPLICATIONS . . . . 836 MHz 12.5 VOLTS COMMON BASE P OUT = 45 W MIN. WITH 4.7 dB GAIN .230 6LFL (M14.
