SD1411

RF & MICROWAVE TRANSISTORS HF SSB APPLICATIONS

SD1411 General Description

The SD1411 is a silicon NPN transistor designed for telecommunications in HF and VHF frequency bands. This device utilizes gold metallized die with diffused emitter resistors to achieve high reliability and ruggedness. ABSOLUTE MAXIMUM RATINGS (T case = 25 ° C) Symbol Parameter Value Unit 1. Collec.

SD1411 Datasheet (52.73 KB)

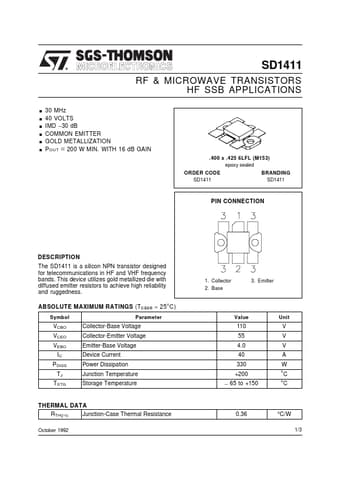

Preview of SD1411 PDF

Datasheet Details

Part number:

SD1411

Manufacturer:

STMicroelectronics ↗

File Size:

52.73 KB

Description:

Rf & microwave transistors hf ssb applications.
SD1411 RF & MICROWAVE TRANSISTORS HF SSB APPLICATIONS . . . . . . 30 MHz 40 VOLTS IMD

* 30 dB COMMON EMITTER GOLD METALLIZATION POUT = 200 W.
