SD1407

RF & MICROWAVE TRANSISTORS HF SSB APPLICATIONS

SD1407 General Description

The SD1407 is a 28 V epitaxial silicon NPN planar transistor designed primarily for SSB communications. This device utilizes state-of-the-art diffused emitter ballasting for improved ruggedness and reliability. ABSOLUTE MAXIMUM RATINGS (T case = 25 ° C) Symbol Parameter Value Unit 1. Collector 2. E.

SD1407 Datasheet (71.82 KB)

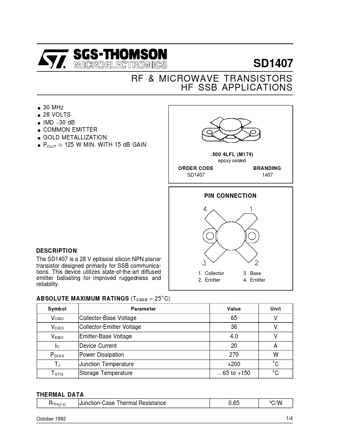

Preview of SD1407 PDF

Datasheet Details

Part number:

SD1407

Manufacturer:

STMicroelectronics ↗

File Size:

71.82 KB

Description:

Rf & microwave transistors hf ssb applications.
www.DataSheet4U.com SD1407 RF & MICROWAVE TRANSISTORS HF SSB APPLICATIONS . . . . . . 30 MHz 28 VOLTS IMD

*30 dB COMMON EMITTER GOLD METALL.
