SSL22, (SSL22 - SSL24) 2.0 AMPS. Surface Mount Low VF Schottky Barrier Rectifiers

SSL22 - SSL24 Taiwan Semiconductor 2A, 20V - 40V Surface Mount Schottky Barrier Rectifier .

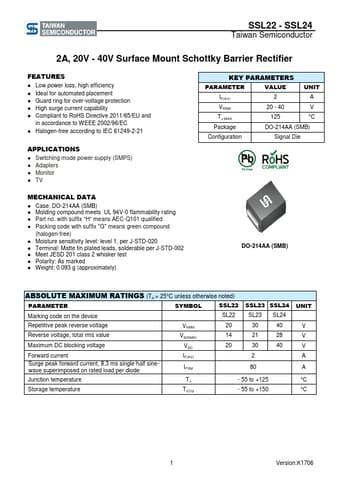

datasheet Preview Page 1 from Datasheet4u.com

SSL22_TSC.pdf

SSL22 Datasheet Preview — Preview of SSL22 PDF

Datasheet Details

Part number:

SSL22

Manufacturer:

TSC

File Size:

241.36 KB

Description:

(SSL22 - SSL24) 2.0 AMPS. Surface Mount Low VF Schottky Barrier Rectifiers

Features

* Low power loss, high efficiency
* Ideal for automated placement
* Guard ring for over-voltage protection
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

Applications

* Switching mode power supply (SMPS)
* Adapters
* Monitor
* TV KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM 2 20 - 40 A V TJ MAX Package 125 °C DO-214AA (SMB) Configuration Signal Die MECHANICAL DATA
* Case: DO-214AA (SMB)
* Molding compound meets UL 94V-0 flam
