1N6626D3D ULTRA FAST RECOVERY POWER RECTIFIER

ULTRA FAST RECOVERY POWER RECTIFIER 1N6626D3A / 1N6626D3B 1N6626D3C / 1N6626D3D High Reliability Screening Options Available. High forward current surge current capability. Switching power supplies or other applications requiring fast switching and low forward loss. Variants D3C & D3D with solder dip finished pads (63Sn/37Pb). ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise stated) VRWM Working Peak Reverse Voltage 200V IO1 Average Rectified For.

1N6626D3D Features

* to enhance thermal performance, to present a competitive alternative for high reliability applications. SOLDER PAD LAYOUT )

* mm A 7.32 B 1.78 C 3.94 Inches 0.288 0.070 0.155 Soldering temperature should be 260°C for a maximum of 10 seconds. PACKAGE MASS Gold Plated Solder Pad Finish

1N6626D3A-TT.pdf

This datasheet PDF includes multiple part numbers: 1N6626D3D, 1N6626D3A. Please refer to the document for exact specifications by model.

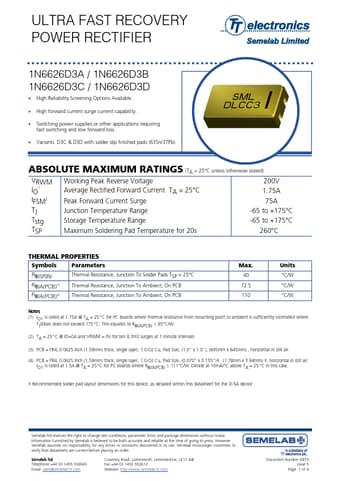

1N6626D3D Datasheet Preview Page 2 1N6626D3D Datasheet Preview Page 3

Datasheet Details

Part number:

1N6626D3D, 1N6626D3A

Manufacturer:

TT

File Size:

360.62 KB

Description:

Ultra fast recovery power rectifier.

Note:

This datasheet PDF includes multiple part numbers: 1N6626D3D, 1N6626D3A.
Please refer to the document for exact specifications by model.
