OMH3150S

Ratiometric Linear Hall-Effect Sensor

OMH3150S Features

* Ratiometric linear output capable of sinking and sourcing current

* Designed for non-contact switching operations

* Operates over a broad range of supply voltages

* Excellent temperature stability operates in harsh environments

* Suitable for military and s

OMH3150S General Description

Each ratiometric linear Hall-effect sensor contains a monolithic integrated circuit on a single chip. This circuit incorporates a quadratic Hall sensing element, which minimizes the effects of mechanical and thermal stress on the Hall element and temperature compensating circuitry to compensate for.

OMH3150S Datasheet (359.56 KB)

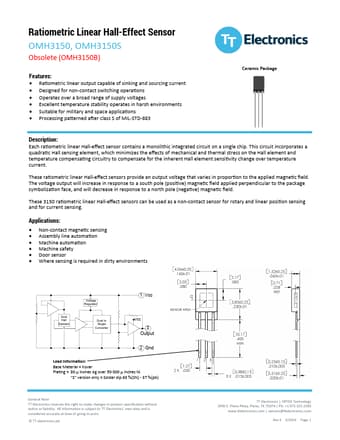

Preview of OMH3150S PDF

Datasheet Details

Part number:

OMH3150S

Manufacturer:

TT

File Size:

359.56 KB

Description:

Ratiometric linear hall-effect sensor.
